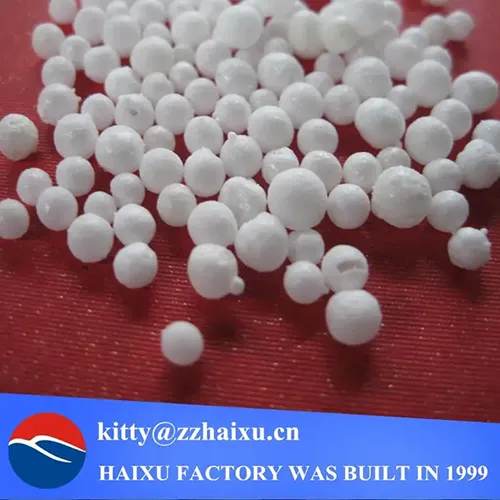

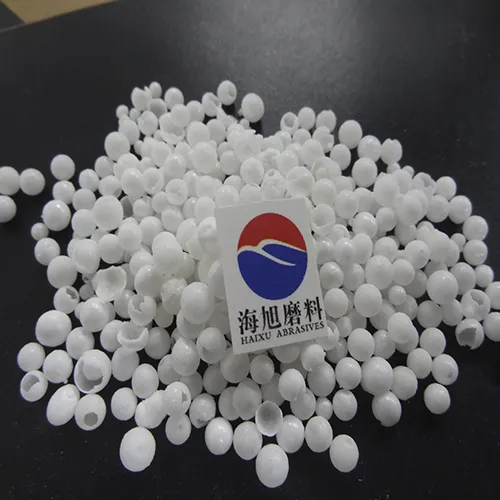

Alumina hollow ball for insulation material
Alumina hollow ball is a new type of high temperature insulation material which is made from industrial aluminum treated by smelting in an electric furnace. The crystal form is a-Al2O3 micro crystals.

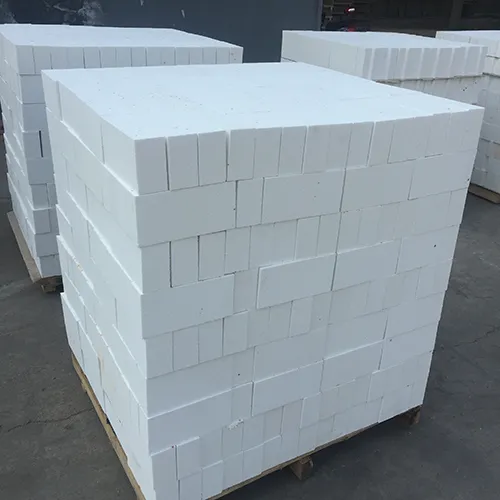

alumina hollow can be made into various shapes with the highest temperature 1800 ℃, which is of high mechanical strength, and the volume density is only one-half of corundum products.
There are mixed grade alumina hollow and graded ball two types:
mixed-level ball diameter: 0.2-5mm

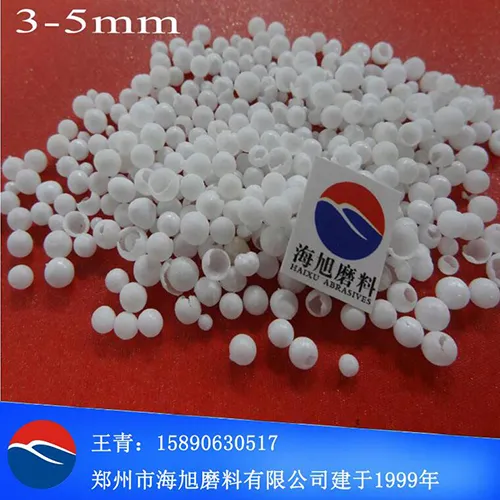

graded ball diameters: 0.2-1mm, 1-2mm, 2-3mm, 3-5mm.
Chemical index for alumina hollow | |||||||||
size | Al2O3 | Fe2O3 | SiO2 | Na2O | MgO | K2O | Cao | ||
0.2-5mm | ≥99% | ≤0.15% | ≤0.3% | ≤0.5% | ≤0.1% | ≤0.1% | ≤0.1% | ||
Physical index for alumina hollow | |||||||||
Bulk density | refractoriness | Shape | |||||||
0.5-1g/cm3 | 1800 degree centigrade | White hollow ball | |||||||
Bulk density(g/cm3)
| Item | 5-4mm | 4-3mm | 3-2mm | 2-1mm | 1-0.5mm | 3-0.2mm | 0.5-0.2mm |
| g/cm3 | 0.45 | 0.55 | 0.65 | 0.75 | 0.85 | 0.85 | 0.95 |
alumina hollow:
